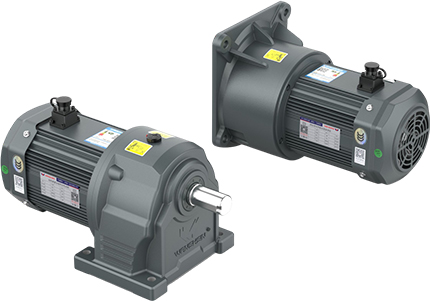

GH/GV Series Permanent Magnet Gear Motor

Overview
Technical Information
  • Strong load-bearing, using high-strength die-casting aluminum alloy shell and carburized hardness HRC62 gears.
  • High energy-efficiency level, energy saving, low temperature rise.
  • Low noise, small size.
  • Maintenance-free, the reducer is lubricated with grease.
  • Wide range of applications, a variety of models and mounting methods are widely used in most industries.
  • Large torque, multiple speed ratios, wide power range.
Power 0.2-7.5kW
Voltage Single-phase 110V, 220V; three-phase 220V, 380V, 415V, 440V (Support customization)
Frequency 50/60Hz
Motor Energy Efficiency IE4，IE5
Motor Rated Speed 1500RPM
Insulation Class F (155℃)
Ingress Protection Standard IP55
Frequency inverter Permanent Magnet Specialized Frequency Inverter
Features
Parameters
Directory
產品特點
  • IE4,IE5
    High efficiency, low energy consumption
  • Permanent magnet synchronous motor
    Small size, light weight, low temperature rise
  • 3
    High energy saving
  • High versatility
    Wide range of ratios and power
  • Gear material 40CrMo+ carburizing
    Load carrying capacity, low noise, long service life
